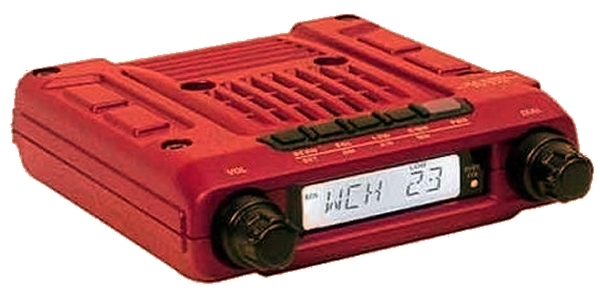

Yaesu FT-245.htm
| Type: |
Citizen Band Transceiver (Thailand CB245) |
| Frequency Range: |
245.0000-245.9875 MHz |
| Channels: |
80 |
| Memories: |
N/A |
| Frequency Steps: |
12.5 KHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 10 W
Lo: 5 W |
| Receiver System: |
Double conversion superheterodyne
1st IF: ?? MHz
2nd IF: ?? KHz |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
13.8 VDC ±10% |
| Current Drain: |
RX: Max ?? mA
TX: Max ? A |
| Antenna Input: |
50 Ohms / SO-239 |
| Dimensions (W*H*D): |
127 x 35 x 126 mm
5 x 1.38 x 4.96 inches |
| Weight: |
1 Kg
2.2 lbs |
| Manufactured: |
2001-20xx (Discontinued) |
| Other: |
CTCSS/PL |
| Related documents: |
N/A |
|
