| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
Europe
TX: 144-146 / 430-440 / 1240-1300 / 2300-2450 / 5650-5850 MHz
RX: 144-146 / 430-440 / 1240-1300 / 2300-2450 / 5650-5850 MHz
USA
TX: 144-148 / 430-450 / 1240-1300 / 2300-2310 / 2390-2450 / 5650-5925 MHz
RX: 144-148 / 430-450 / 1240-1300 / 2300-2310 / 2390-2450 / 5650-5925 MHz
3 cm / 10.0-10.5 GHz option (CX-10G)
1.2 cm / 24 GHz option (CX-24G) |
| Modes: |
AM / FM / SSB / CW / RTTY / DV & DD (D-Star) / FM-ATV
Selectable audio subcarriers for ATV: 4.5, 6.0 and 6.5 MHz
(Also 5.5, 7.02 and 7.2 MHz from firmware v1.15 and up) |
| Channels: |
500 regular in up to 100 groups
25 scan edge pairs (Program scan)
12 call (2 in each band)
2500 repeater
300 GPS
Non-volatile EEPROM storage |
| Sensitivity: |
0.18 uV (12 dB SINAD) |
| RF Power output: |
2 m: 10 W (AM: 2.5 W)
70 cm: 10 W (AM: 2.5 W)
23 cm: 10 W (AM: 2.5 W)
13 cm: 2 W (AM: 500 mW)
6 cm: 2 W (AM: 500 mW)
3 cm: 500 mW (AM: 125 mW) With optional CX-10G using 13 cm (2.4 GHz) IF
1.2 cm: 500 mW (AM: 125 mW) With optional CX-24G using 13 cm (2.4 GHz) IF |
| Voltage: |
13.8 VDC ±15% (Barrel jack) |
| Current Drain: |
RX: Max 3 A
TX: Max 5.5 A |
| Aerial Input: |
|
| Aerial Input: |
2 m/70 cm/23 cm 50 ohm / N-jack
13 cm 50 ohm / SMA
6 cm 50 ohm / SMA
(There is also an SMA connector for the GPS antenna) |
| Dimensions (W*H*D): |

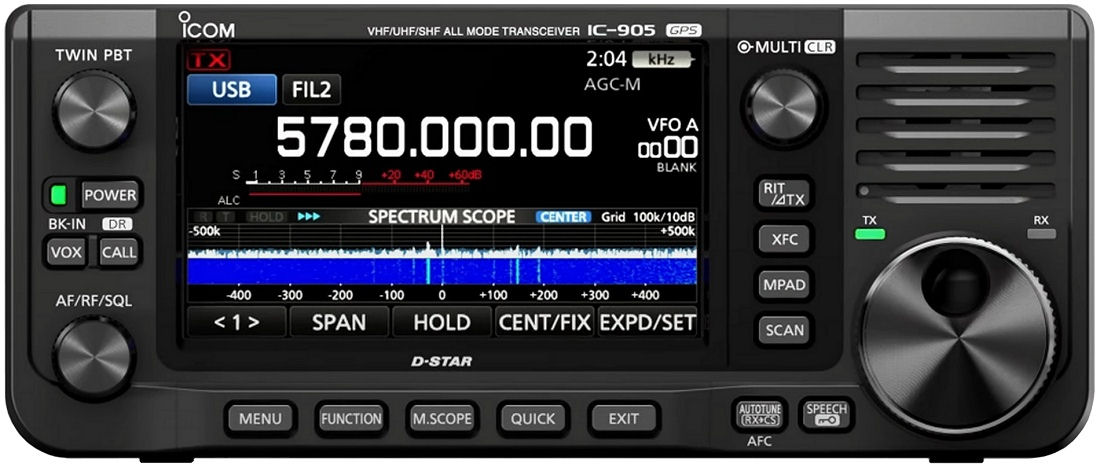

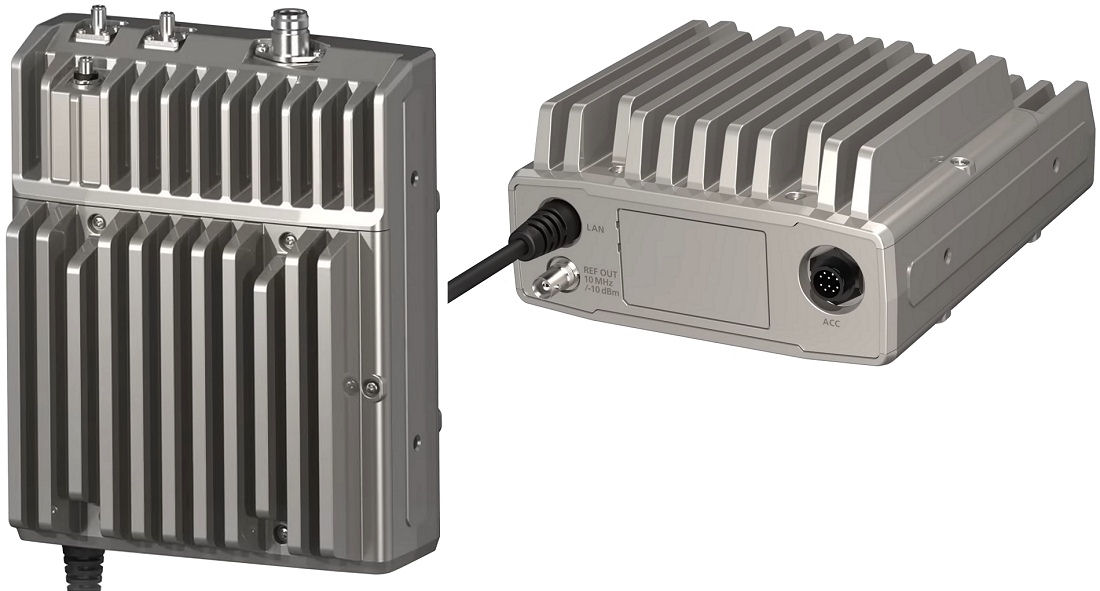

Controller: 200 x 84 x 82 mm - RF unit: 172 x 87 x 210 mm
Controller: 7.9 x 3.3 x 3.2 inches - RF unit: 6.8 x 3.4 x 8.3 inches |
| Weight: |
Controller: 940 gr - RF unit: 3.2 Kg
Controller: 2.1 lbs - RF unit: 37.1 lbs |
| Manufactured: |
Japan, 2023-202x |
| Other: |
10m (UX-19E), 6m (UX-59A), 23cm (UX-129E), 2m SSB (UX-S92E)
and MW/76-950 MHz RX (UX-R91A) options. Twin RX |
| Related Documents: |
User Manual (11.1 MB) |
