| Type: |
Amateur HF/VHF transceiver |
| Frequency Range: |
RX: 0.030000 ~ 74.800000 MHz*
TX:
1.800000 ~ 1.999999 MHz*
3.500000 ~ 3.999999 MHz*
5.255000 ~ 5.405000 MHz
7.000000 ~ 7.300000 MHz*
10.100000 ~ 10.150000 MHz
14.000000 ~ 14.350000 MHz
18.068000 ~ 18.168000 MHz
21.000000 ~ 21.450000 MHz
24.890000 ~ 24.990000 MHz
28.000000 ~ 29.700000 MHz
50.000000 ~ 54.000000 MHz*
70.000000 ~ 70.500000 MHz* (For only the European versions)
* The frequency coverage and guaranteed ranges differ, according to the Transceiver version |
| Modes: |
AM / FM / SSB / CW / RTTY |
| Output Power: |
HF and 50 MHz bands (AM: 0.125 W ~ 25 W) (SSB/CW/RTTY/FM: 0.6 W ~ 100 W)
70 MHz band* (AM: 0.075 W ~ 12.5 W) (SSB/CW/RTTY/FM: 0.3 W ~ 50 W) * Depending on the Transceiver version |
| Channels: |
101 (including 2 scan edges) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC ±15% |
| Current Drain: |
RX: Max ?? A
TX: Max ?? A |

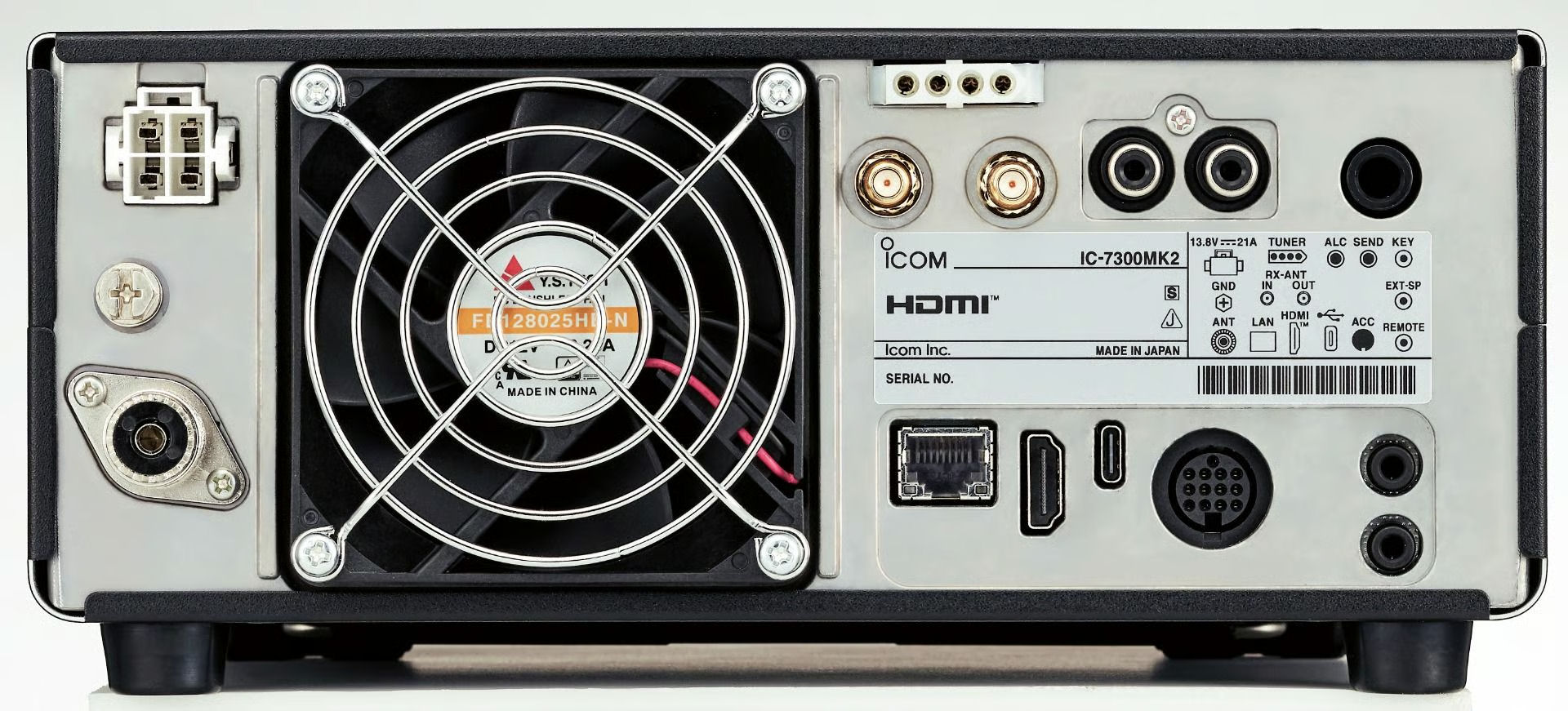

| Antenna Connector: |
SO-239 × 1 (for the HF/50 MHz/70 MHz band)
SMA × 1 (for the HF/50 MHz/70 MHz band, RX only) |
| Dimensions (W*H*D): |
240 x 94 x 238 mm
9.45 x 3.7 x 9.4 inches |
| Weight: |
4.2 Kg
9.3 lbs |
| Manufactured: |
Japan: 2025-202x |
| Other: |

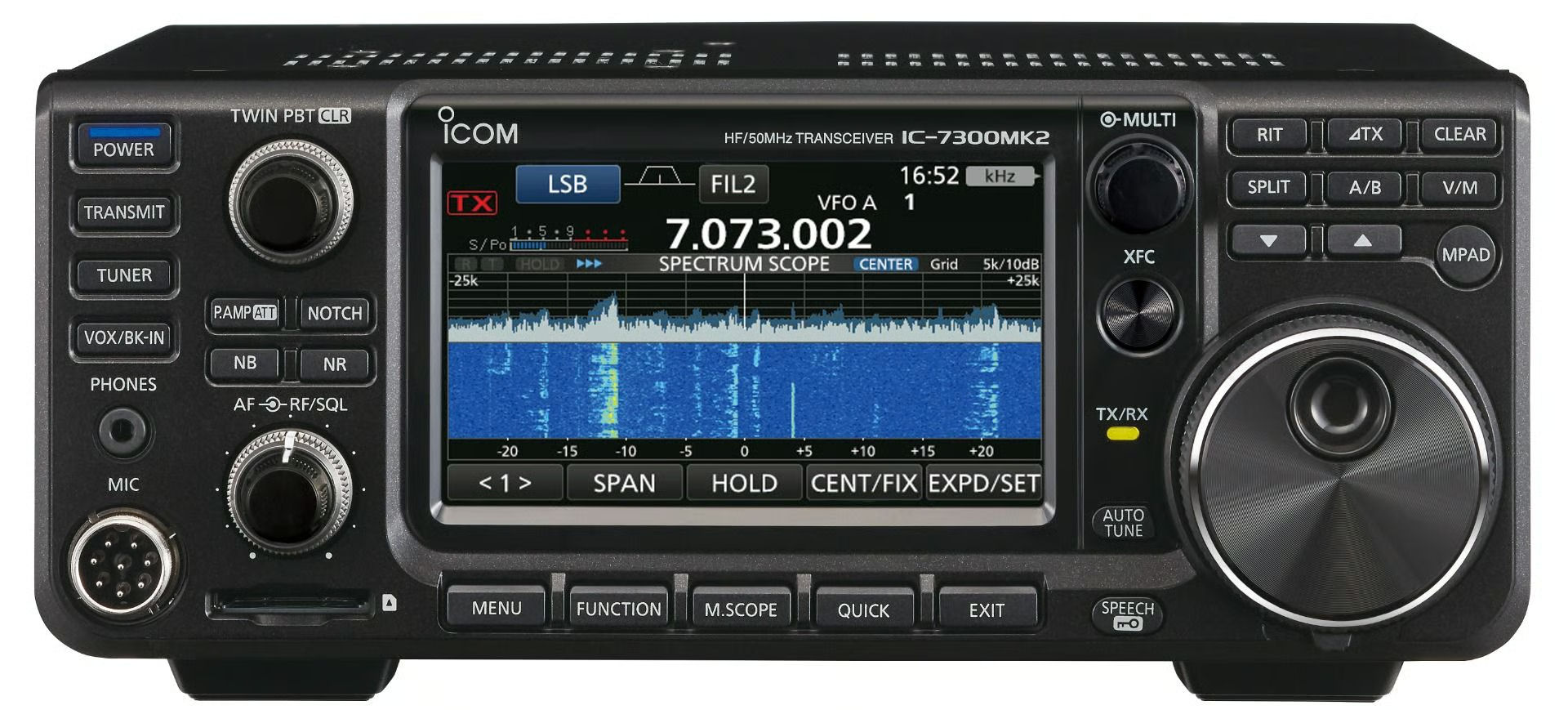

4.3" touch-TFT. CTCSS/PL. High performance real-time band scope.
Built-in ATU and keyer. USB-connector for audio in/out and CI-V.
CW and RTTY-decoder. HDMI port. RX antenna in/out. |
| Related Documents: |
Basic Manual (10.5 MB)
Advanced Manual (11.7 Mb) |
